1. WOB-L Piston Pumps
  2. Piston Pumps WOB-L® 2580
Back to the product list

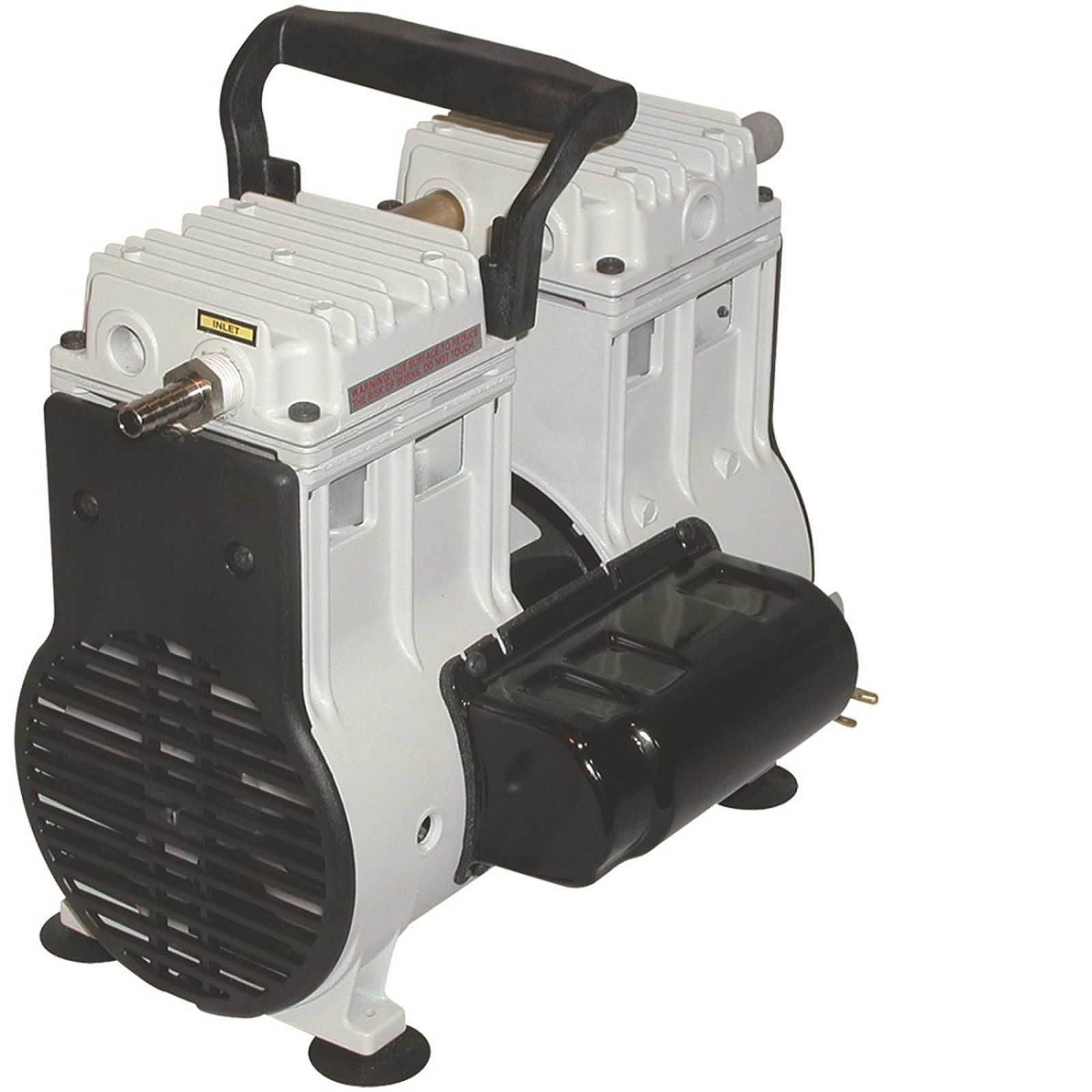

Piston Pump WOB-L® 2580, 115V 60HZ 1PH

Delivery time will be confirmed in the order

Contact Us
Request a Quote Find a Local Representative
Share

Description

Product Details

  • Economical
  • Oil Free
  • Adjustable Vacuum

Spesification

Technical Data




2561
2562
2563
2567
2580
2581
Free Air Displacement @ 60 Hz, cfm (L/min)
2.3 (65)
2.3 (65)
2.3 (65)
3.5 (100)
3.5 (100)
3.5 (100)
Ultimate Pressure, torr
5
7.5
5
60
9
5
Motor Power, HP (kW) at 60 Hz
1/3 (0.25)
1/3 (0.25)
1/3 (0.25)
1/3 (0.25)
1/3 (0.25)
1/3 (0.25)
Inlet (Exhaust) Connection Thread NPT
1/4
1/4
NW16
1/4
3/8
3/8
Tubing Needed, I.D. in. (mm)
1/4 (7)
3/8 (10)
1/4 (7)
1/4 (7)
3/8 (10)
1/4 (7)
Weight, lbs (kg)
16.7 (7.5)
16.7 (7.5)
16.7 (7.5)
16.7 (7.5)
22.5 (10.3)
24.5 (11.1)
Dimensions, LxWxH, in (mm)
17.3x6.5x10.5 (440x170x270)
17.0x7.5x12 (430x190x310)
17.3x6.5x10.5 (440x170x270)
15x10x10 (380x250x250)
13.3x7.8x11.7 (340x200x300)
17x7.5x12 (430x420x190)
115V Order Number
2561B-50
2562B-01
2563B-24
2567B-50
2580B-01
2581B-50

Downloads

642518d

manual

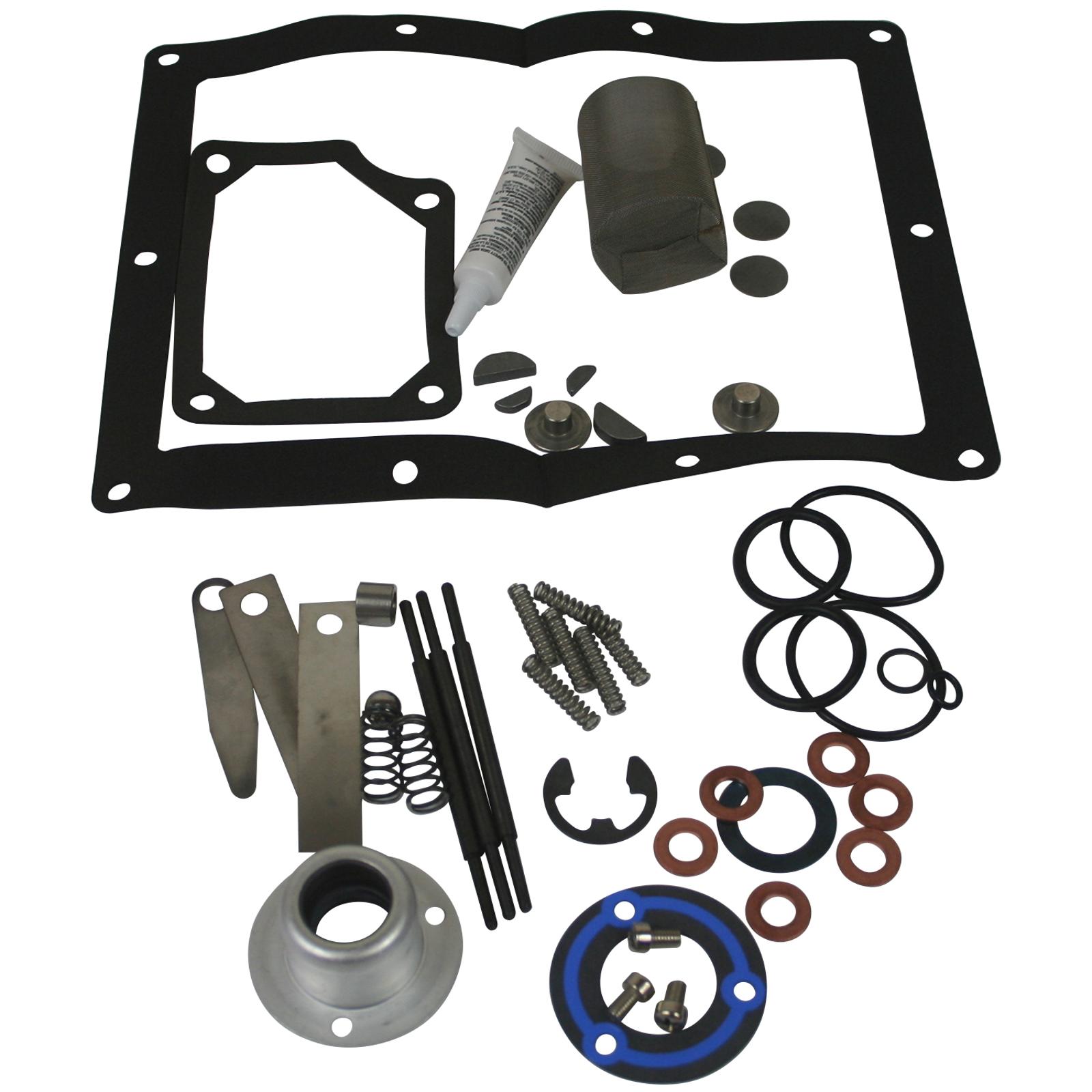

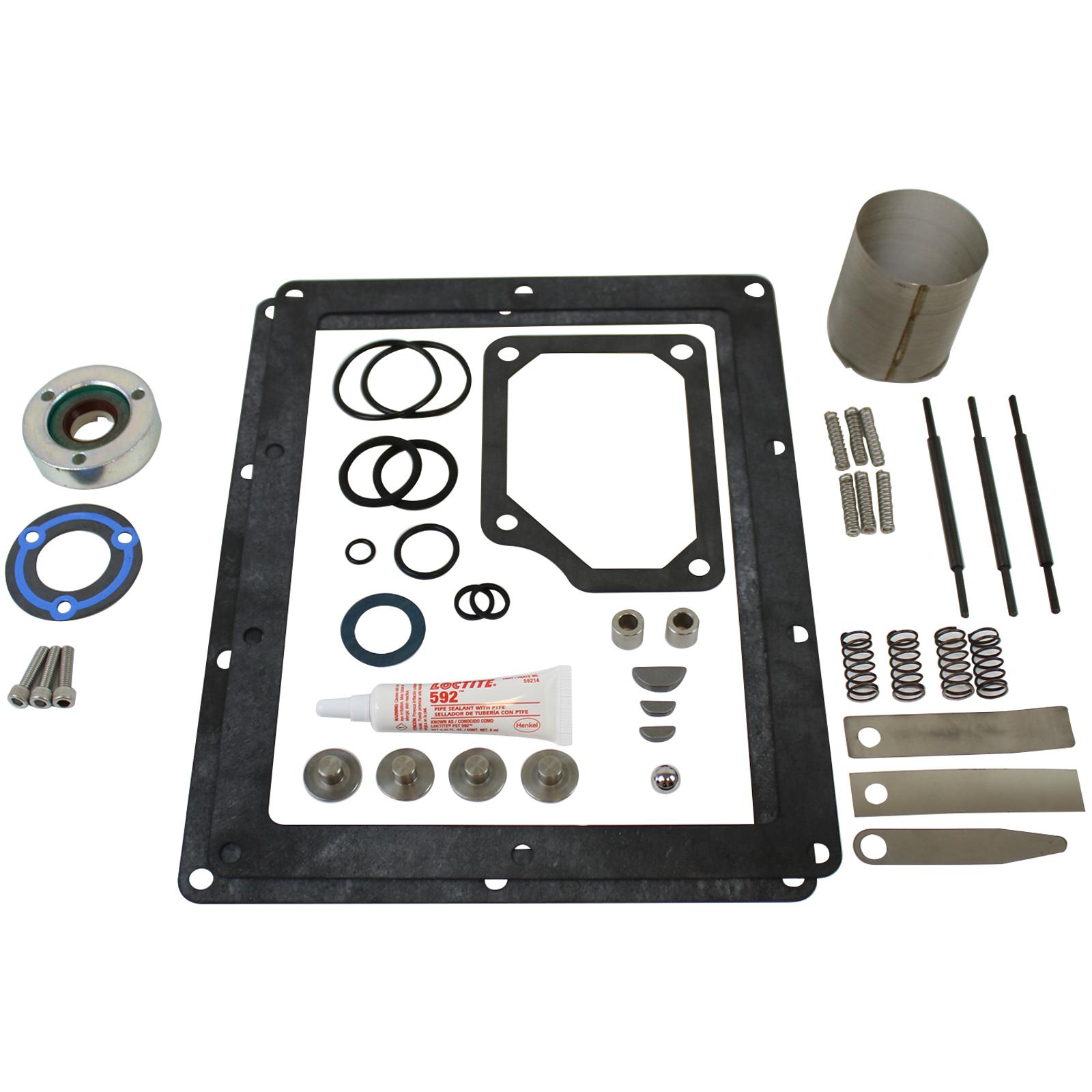

Accessories and Maintenance Kits
