Belt driven pump ChemStar 1400N

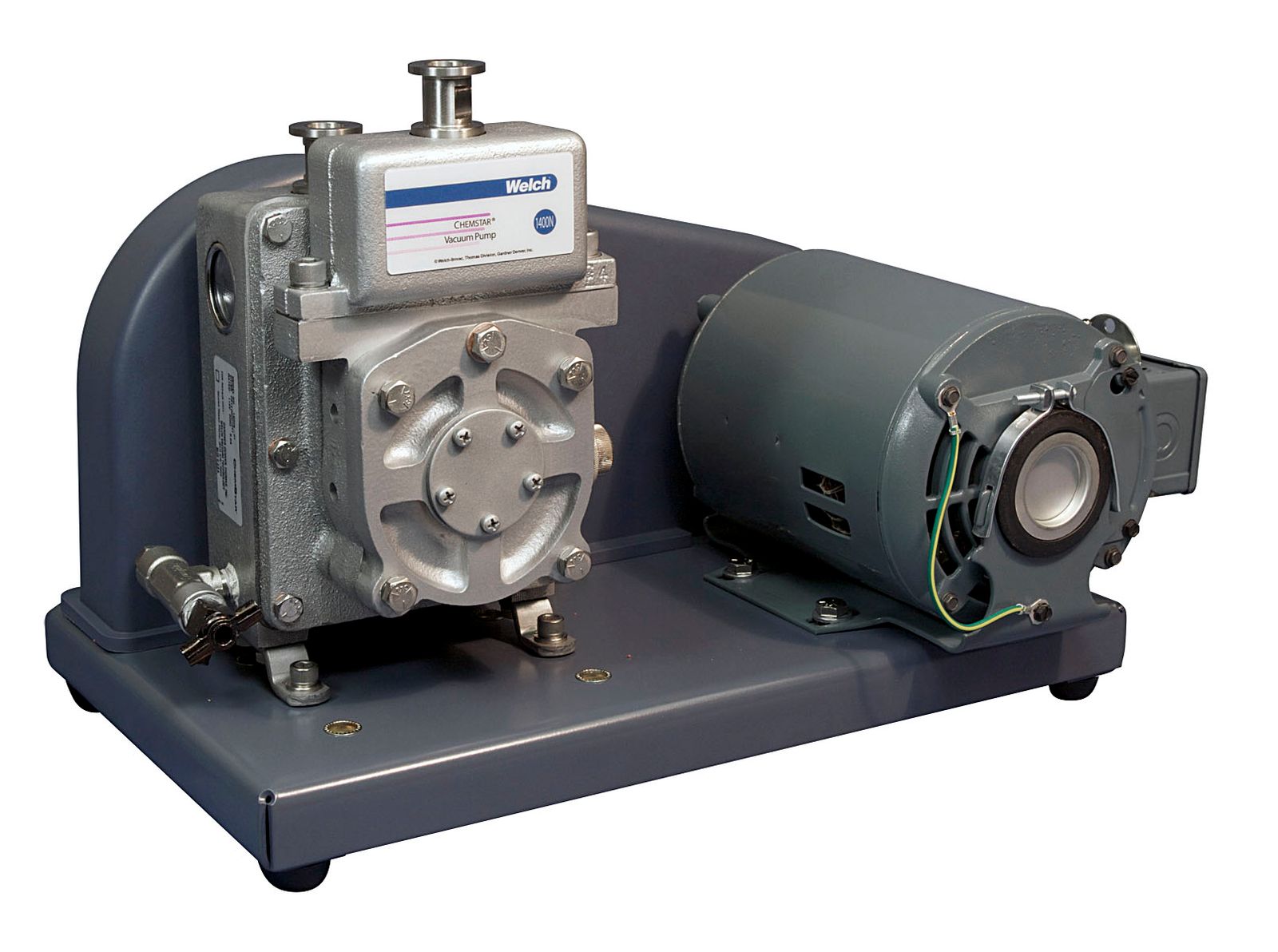

Welch Chemstar 1400N corrosion-resistant belt-driven vacuum pump engineered for chemical and laboratory applications

The Welch ChemStar 1400N ensures reliable, high-quality vacuum capabilities for demanding applications. Explore the full Belt-Driven Pump product line in our category.

Chemical Resistant Belt-Driven Pump

•Large oil capacity for excellent dilution of contaminants

•Vital parts are corrosion resistant

•Low pump rpm reduces frictional wear

•Nitrogen purge standard

•Easy attachment with NW fittings

•Wired for 115V/60Hz

•Free air displacement @60Hz: 0.9 cfm (25 L/min)

•Ultimate Pressure: 1x10-4 Torr (0.00013 mbar)

Shop Now - USA Only

Low rotation speed for longer service life
Vital parts corrosion resistant
Large oil reservoir dilutes contaminants

ChemStar belt-driven Vacuum Pump is designed to tolerate harsh chemical contamination. Vital pump parts are corrosion resistant. The large oil reservoir with PTFE surfaces dilutes contamination and the low pump rotational speed lessens friction to reduce operating temperature and chemical effects. PTFE surfaces, fluorcarbon gaskets and seals, Nitrogen purge to cool and degas oil. ChemStar system comes with Gold Oil, a synthetic lubricant designed to minimize effects of chemical contaminants.

¹⁾CHEMSTAR pump should not be operated continuously at pressures above 10 torr. Ultimate pressure measured with a trapped McCleod gauge.

PARAMETER	UNIT	1400N	1402N	1376N
Applications		Vacuum Manifolds	(Schlenk Lines)	High boiling point evaporations (to 195 deg. C)
Type		Belt-Drive Vacuum Pump	chemical resistant	Belt-Drive Vacuum Pump
Free Air Displacement
– @ 50 Hz	m3/hr (l/min)	25	160	300
– @ 60 Hz	cfm (l/min)	0.9	5.6	10.6

Ultimate Pressure 1)	mbar (Torr)	1 x 10-4 (0.00013)	1 x 10-4 (0.00013)	1 x 10-4 (0.00013)
Pump RPM		580	525	525
Oil Capacity		0.62(0.59)	2.25(2.1)	2.5(2.37)
Motor Horsepower	watts	1/3(250)	1/2(370)	1(750)
Adjustable Vac. / Gas Ballast		Yes	Yes	Yes
Tubing Needed		7/16(11)	13/16(21)	13/16(21)
ISO Exhaust / Intake Flange		NW 16	NW 25	NW 25
Overall Dimensions L x W x H	cm (in)	45.2x22.9x32 (17.8x9x12.6)	49x35.3x39.1 (19.3x14.1x15.4)	49x31.2x39.6 (19.3x12.3x15.6)
Ship Weight	kg (lbs)	32.3 (71)	60.5 (133)	82.3 (181)
Shipping Carton Dimensions L x W x H	cm (in)	52.1x35.1x36.8 (20.5x13.8x14.5)	57.2x39.4x49.5 (22.5x15.5x19.5)	59.5x45x48 (22x18x19)

1400n-exploded-view-and-repair-kits.pdf

Exploded view and repair kits

1400n-manual.pdf

Manual

North America

Europe

Africa, Middle East & India

Asia Pacific

Global

ChemStar 1400N

Description

Technical Data

Downloads

1400n-exploded-view-and-repair-kits.pdf

1400n-manual.pdf

Major Repair Kit 1373K-06

Replacement Glass Jar 1415B

Blank-Off Flange NW16 388101

Hose Adapters - ISO Fitting - NW 25 / 13/16" 501262
